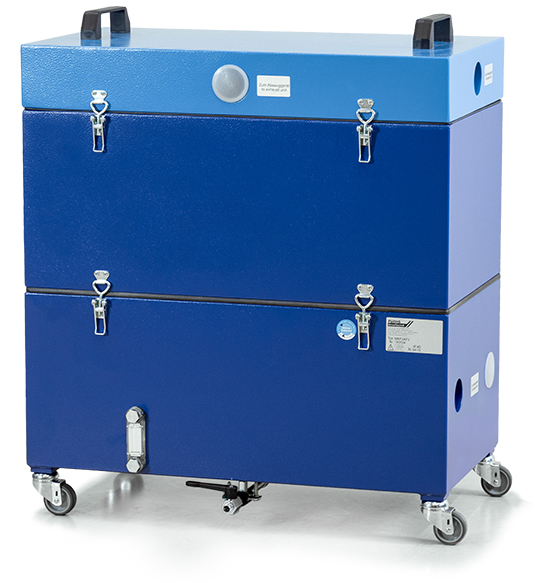

MKFVAF
Pre-separator module
MKFVAF –
Application
- Oil mist, emulsion mist
MKFVAF
The volume advantage for oil and emulsion mist
Luftmenge max. ohne FA: bis 450 m³/h
MKFVAF –
Features
- Highly efficient pre-separation of oil and emulsion mist through multi-stage filtration
- Washable metal knitting filter and optional with F7 filter insert
- For volume flows up to 450 m³/h
- Extraction ports 2 x NW 50 mm
- Option: Pump set for pumping out the filtered oil via integrated oil drain cock
MKFVAF –
Handling
- Mobile or stationary use
- The unit can be connected on delivery to an existing extraction and filter system and put into operation immediately.
| Model | Air volume max. without FA (m³/h) | Filter level | Electr. connection (V/Hz) | Extraction ports (mm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| MKFVAF | bis 450 | 1 bzw. 2 | 230/400V/50 – 60 | 2 x NW50 | 660 x 380 x 490 bzw. 660 x 380 x 770 | ca. 30 – 40 |
