ABKAB03

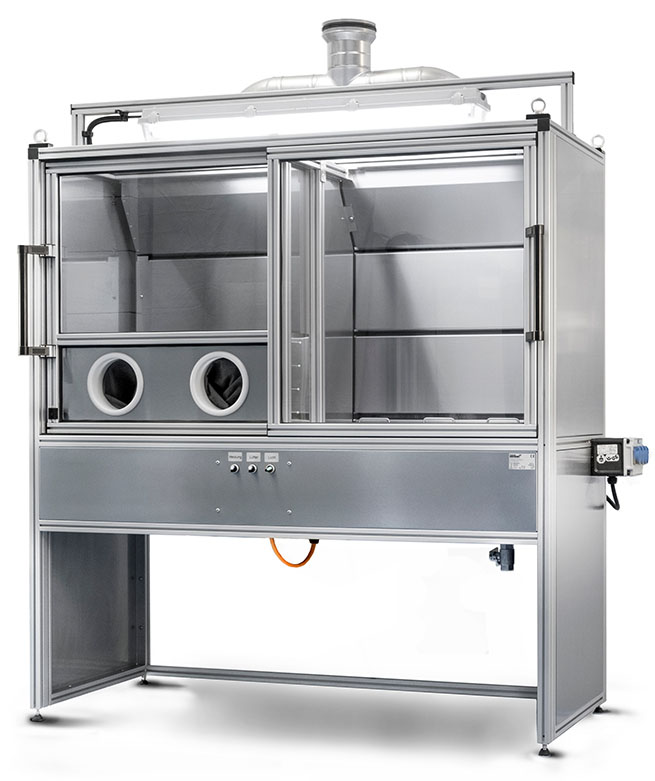

Extraction cabin

ABKAB03 –
Application

  • Solvent vapours
  • Adhesive vapours

ABKAB03
Divided into two parts behind closed doors

ABKAB03 –
Features

  • Two-part extraction cabin for cleaning tool parts with orange terpene
  • Material: aluminium frame, stainless steel walls
  • Left cabin area for blowing off with compressed air, reach-through with gloves

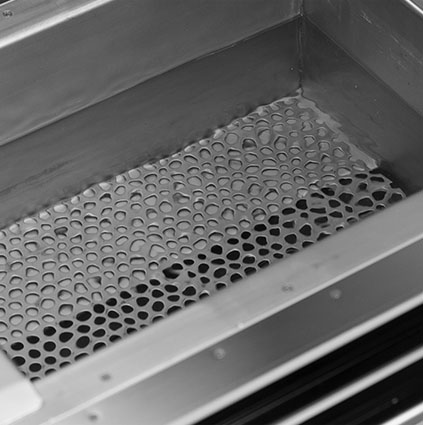

  • Right cabin area with stainless steel cleaning basin and 3 sieves
  • Complete extraction via extraction wall with suction slots to the rear
  • Laminated safety glass panes.
  • Integrated lighting
  • Compressed air supply
  • 4 sockets and light switches
  • Connection cleaning basin 230V/50Hz
  • Power consumption 3000 W,
  • 400V/50Hz 9000 W, regulation 31-80°C,
  • Limitation 95°C,
  • Extraction port 1x NW 200 mm top
  • Insertion height approx. 1000 mm

ABKAB03 –
Handling

  • Stationary use
