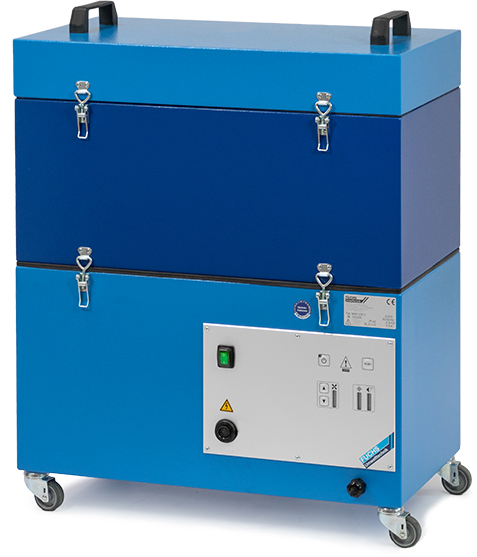

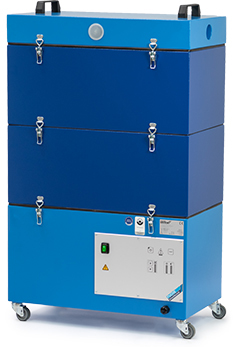

MKF
The interchangeable filtering device for extraction volume max. 625 m3 per hour
MKF –
Application
- Inscription lasers, engraving lasers
- Welding lasers, cutting lasers
- Soldering fume, (several workstations)
- Particulate matter, smoke
- Solvent vapours, adhesive vapours
- Erosion mist
- Plastic injection moulding emissions in conjunction with pre-separator:
- Oil mist, emulsion mist
MKF
The classic module
Air volume max. without FA (m³/h): 30 – 625 m³/h
MKF –
Features
- Compact and versatile
- Fuchs Umwelttechnik multi-stage filter combinations achieve a consistently high filter capacity
- Depending on requirements, different fans can be used.
- Safety guaranteed: automatic filter monitoring via negative and differential pressure
- IFA certified
- Further options on request
MKF –
Handling
- Mobile or stationary use
- Easy to transport and dismantle without tools
| Model | Air volume max. without FA (m³/h) | Negative pressure max. (Pa) | Electr. connection (V/Hz) | Electr. power (kW) | Sound pressure level 1m (dBA) | Dimensions (mm) | Weight without FA (kg) |
|---|---|---|---|---|---|---|---|
| MKF | 30 – 625 | 3600 – 21000 | 120/230V/50–60 | 0,40 – 1,30 | 57 – 67 | 660 x 380 x 825 | ca. 60 |
