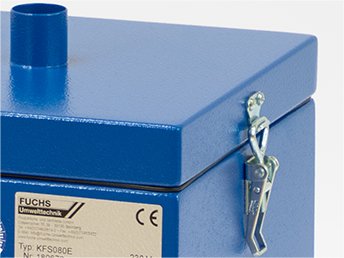

KFS
The interchangeable filtering device for extraction volume max. 80 m3 per hour
KFS –
Application
- Very small welding and inscription lasers
- Soldering fumes
- Adhesive vapours
KFS
Small in size, big in technology
Air volume max. without FA (m³/h): 30 – 80 m³/h
KFS –
Features
- Needless to say, the high-quality
- EC motor is designed for continuous operation.
- Safety guaranteed:Automatic filter monitoring via differential pressure
KFS –
Handling
- Very compact size and therefore easy to integrate into machines
- KFS is even suitable for 19˝ inserts
| Model | Air volume max. without FA (m³/h) | Negative pressure max. (Pa) | Electr. connection (V/Hz) | Electr. power (kW) | Sound pressure level 1m (dBA) | Dimensions (mm) | Weight without FA (kg) |
|---|---|---|---|---|---|---|---|
| KFS | 30 – 80 | 1700 – 6200 | 230V/50 – 60 | 0,1 – 0,25 | 53 | 250 x 250 x 400 | ca. 20 |
